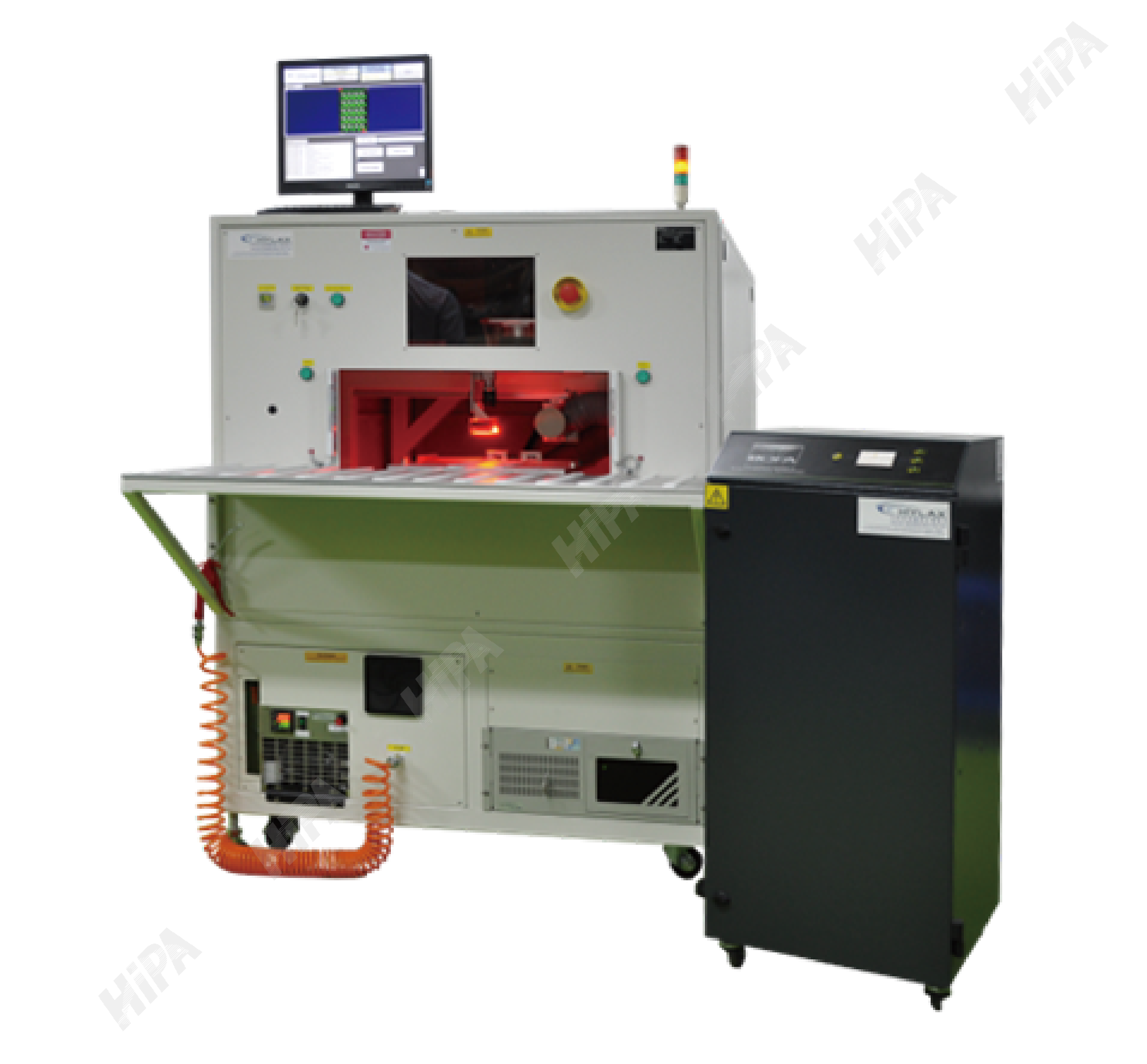

Innovative, versatile and cost effective Hylax PCB laser depaneling system is the latest PCB depaneling solution from Hylax technology integrated with the state of the art HT9340 green laser systems. With precise laser energy control and fiducial recognition camera build in, the system is able achieve accurate and repeatable cutting processes.
Capitalizing on the high pulse energy of the laser, HT9340 Green laser system is able achieve high cutting speed with minimum heat affected zone (HAZ) on the PCB. The process has gain its popularity in many industries and becoming a viable alternative to replace the conventional punching and routing methods, that will induce mechanical stress during the cutting process.
如需中文資料請E-mail：james@hylax.com
Excellent cutting quality and high reliability
High accuracy and repeatability
Thermal and mechanical stress free process
Low utility cost and maintenance
Window based user friendly interface software
