HM110FFH Laser Marking System
返回產(chǎn)品列表

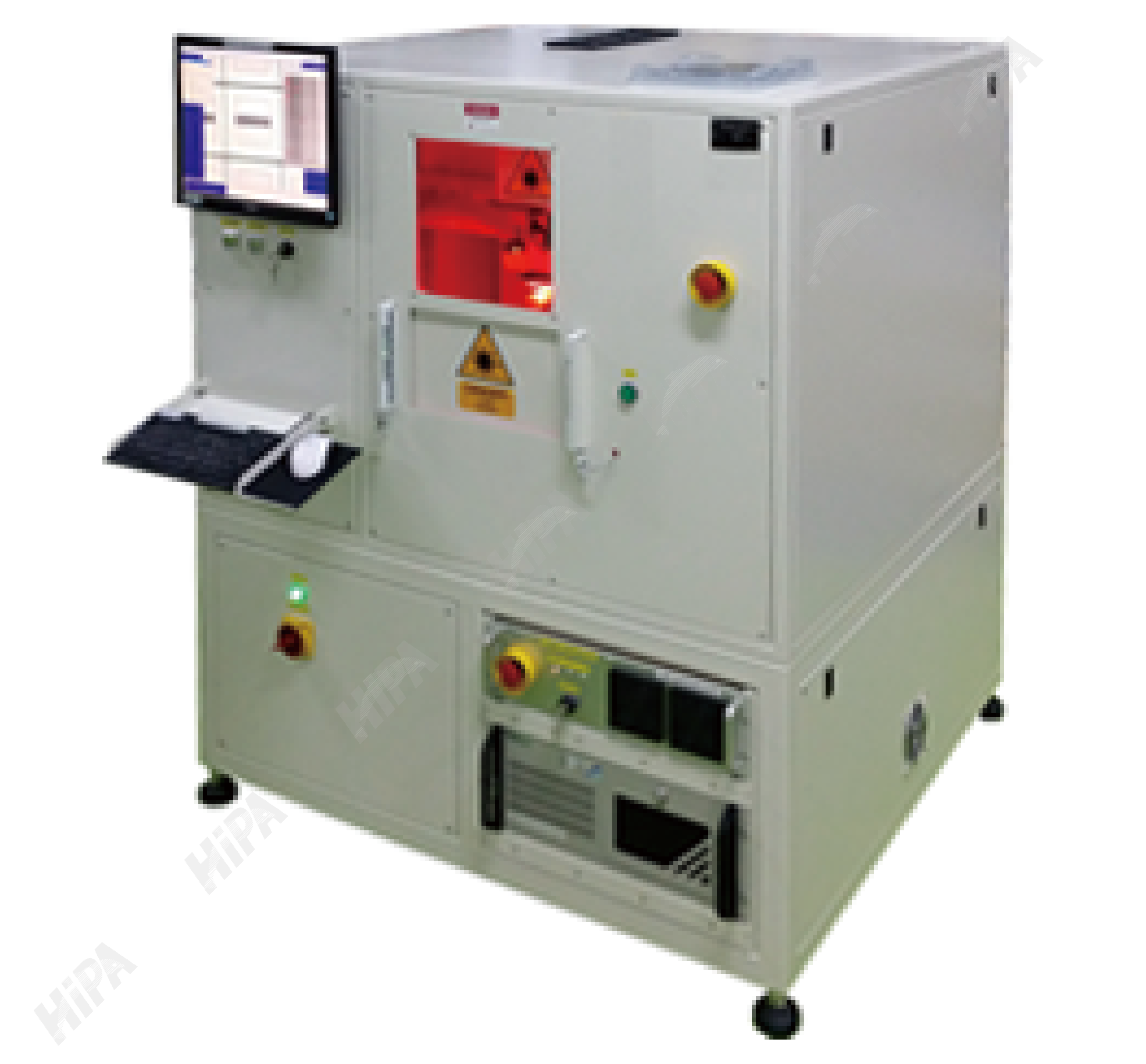

HM110FFH is a standalone semi-automated film frame handler equips with
Hylax proprietary technology, UV scanvision? laser marking system, that is
capable of performing OCR (Optical Character Recognition) and 2D Data
matrix marking on film frame ring.
Combining both the camera and laser system in a single optical path, Hylax
scanvision? technology offers high precision and high speed laser processes
solution to the manufacturing industry.
Vision check
Orientation check
Fiducial find
Pre/Post mark inspection
2D Data matrix verification
